Compact Fiber Laser Marking Workstation – Class 1
XS+ Fiber Marking Laser – Class 1

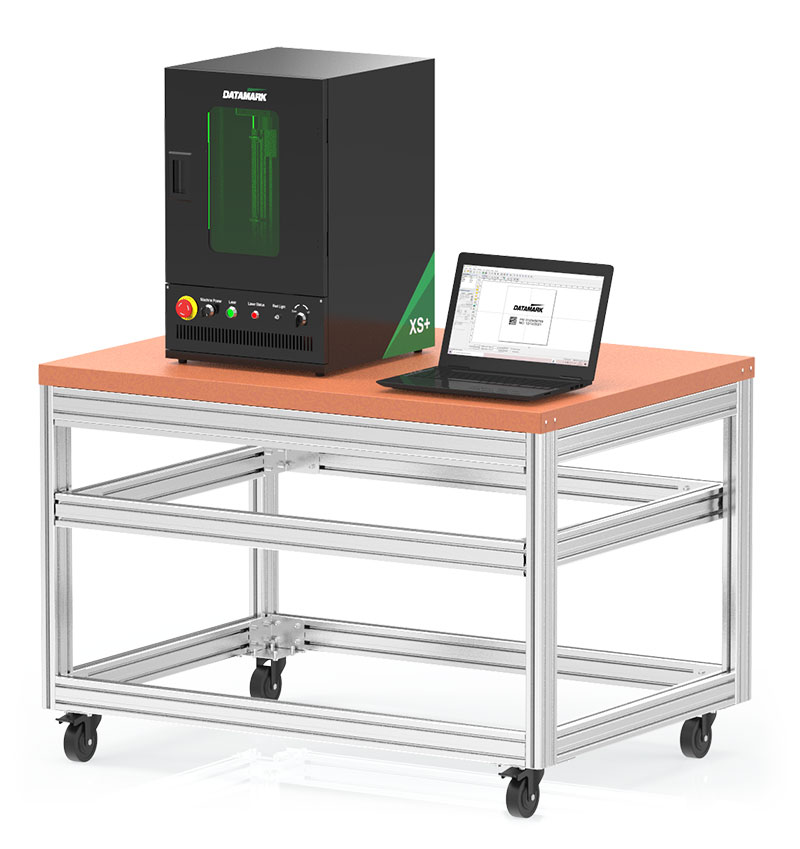

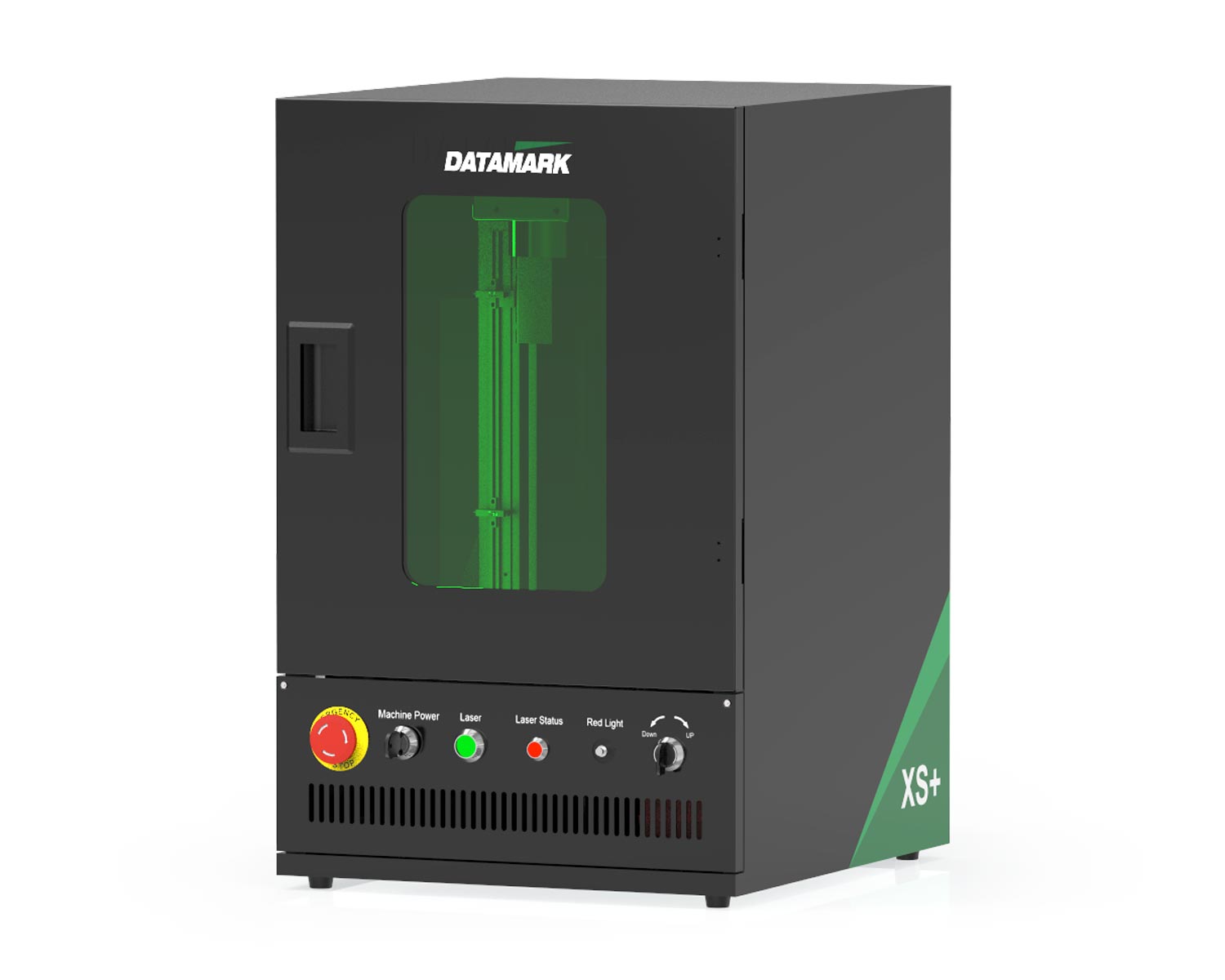

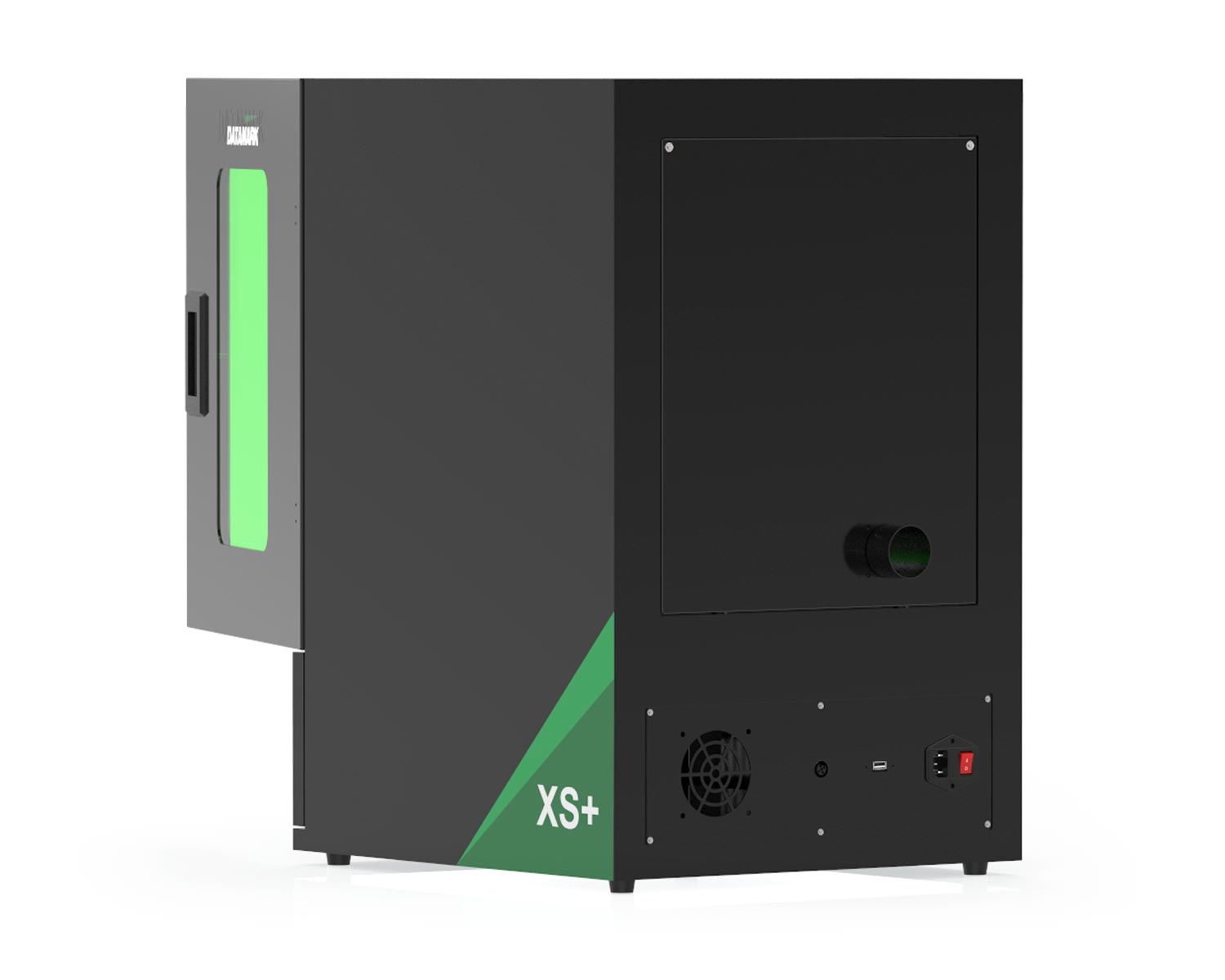

The XS+ is a compact Class 1 fiber laser marking workstation offering professional-grade performance with a small footprint. Its 20-watt MOPA fiber is great for marking, engraving, and etching a wide variety of metals and alloys.
The XS+ offers peace of mind, allowing for efficient, precise marking without compromising workplace safety.

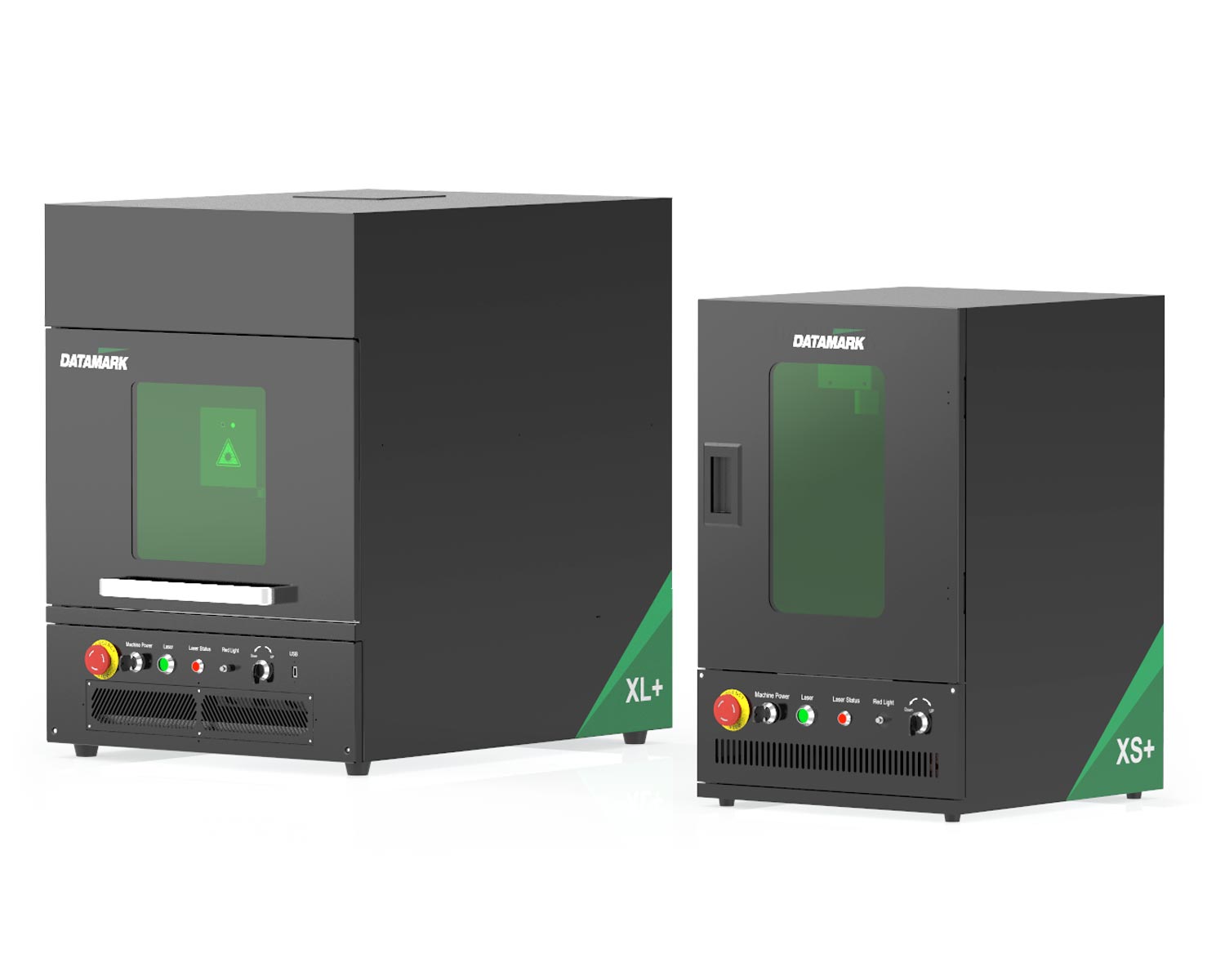

Larger XL+ series machines are also available with up to 100 watts of power for larger workpieces and more demanding applications. For greater installation flexibility, see our open-architecture (Class 4) laser marking systems.
Starting at $9,925
The power of a fiber laser right at the desktop.
- Professional-Grade Performance with a Small Footprint
- The XS+ is our most compact Class 1 laser marking and engraving workstation. It provides an economical solution for high-speed, precision laser marking and engraving of metals and alloys. This is a great solution for machined parts, identification data plates, firearm components, tools, signs, and other promotional items.
- Take the Guesswork Out of Laser Safety

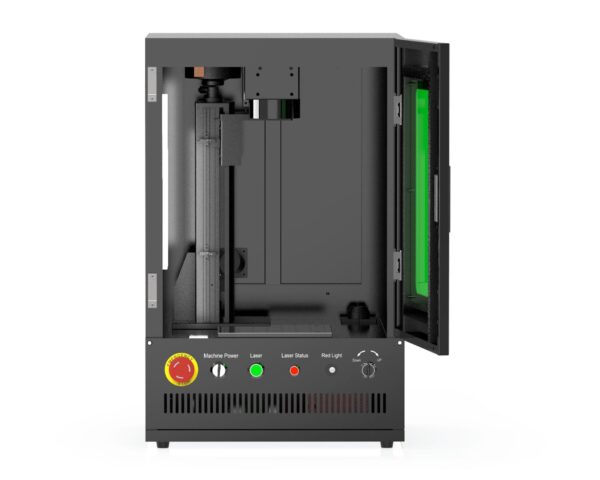

- A Class 1 cabinet fully encloses the marking laser for maximum safety, featuring a laser-safe viewing window, magnetic proximity sensor, and E-stop.
- Industrial-Grade Components for Peak Performance
- Rated for 100,000 hours of operation, our fiber lasers sources are reliable for 24/7 operation. They provide a powerful and efficient combination of flexible fiber delivery, high peak power and excellent beam quality. Our all-metal Class 1 workstations feature a power Z-axis and interior lighting system.
- Powerful, Intuitive Software
- Every unit ships with Datamark's feature-rich Datasoft™ laser marking software. Easily mark text, graphics, serial numbers, date codes, Data Matrix and QR codes, UID and UDI syntax, linear barcodes, and much more.

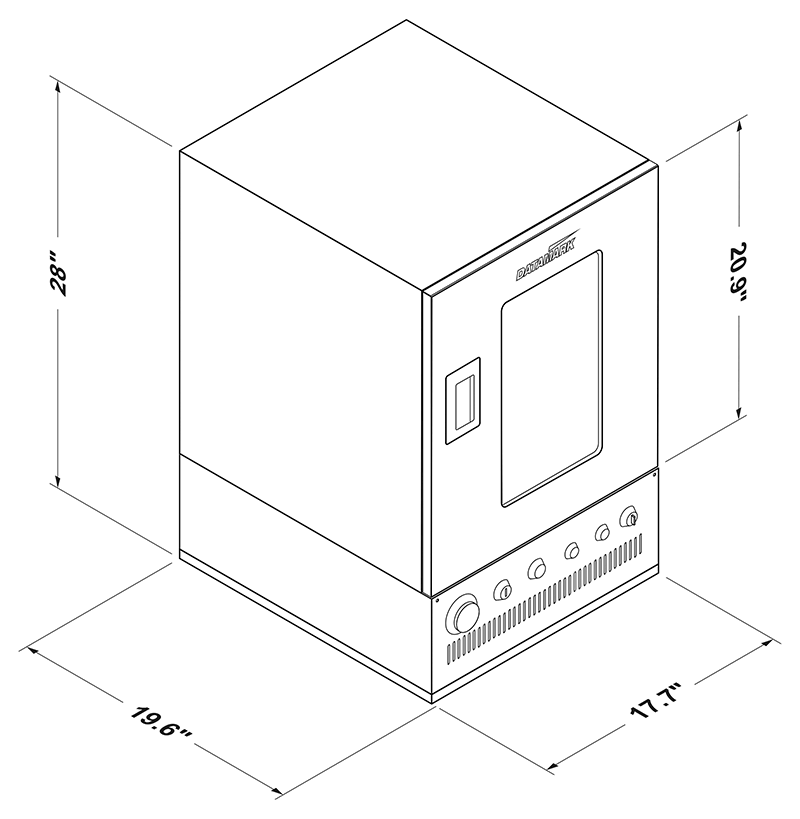

Datamark XS+ Specifications
XS+ Specifications
Standard Package Includes:
- XS+ series benchtop enclosure
- Laser controller and marking head
- Lens
- Manual
- DataSoft™ PC software package (Windows PC not included)
DataSoft™ Laser Marking Software
All Datamark laser markers ship with powerful, WYSIWYG laser marking software to easily mark text, graphics, serial numbers, date codes, Data Matrix and QR codes, UID and UDI syntax, linear barcodes, and much more. Requires a PC running Windows 10 or higher (not included).
- Includes CAD design tools and editing of both basic and advanced shapes.
- Supports various object hatch functions.
- Utilizes color-coded laser parameters.
- Generate outlined marking previews.
- Quickly generate 2D data matrix, QR, and GS1 (UDI / UID) codes.
- Import logos and vector graphics: PLT (HPGL), DXF, AI, and SVG files.
- Supports True-Type and high-speed vector fonts.
- Marking data can be imported from various databases: TXT, Excel, and SQL Server.
- TCP/IP and serial data connections.
- Programmable I/O signals with cycle control and status monitoring functions.
- Automatic marking of serial/VIN numbers, dates, time, and shift codes.
- Supports barcode scanning for automatic data entry.
- On-the-fly marking function for moving parts.
- Control a rotary D-axis.
- Save and reuse your layouts.
- LAN/Ethernet and wireless Wi-Fi connection.
Options & Accessories
- 80mm Rotary
- LB31002SG
- Plug-and-play rotary for radial marking of small to medium components. Driven by a NEMA 24 stepper motor, with both height and angle adjustment.
- Dimensions (L x W x D): 9.2" x 4.7" x 6.5" / 1.0" pass-through bore
- Download data sheet
- AD Access Fume Extractor
- LE3415BAAF1-P
- Compact, entry-level fume extraction system for light-duty laser marking and engraving applications. 106 CFM air flow.
- Dimensions: 20.1" x 12.6" x 12.2", 46.3 lbs.
- AD 350 Fume Extractor
- LE1741A8203-P
- Fume extraction system for laser marking and engraving applications. 223 CFM air flow.
- Dimensions: 23.2" x 14.8"" x 14.8", 88 lbs.
- Laser Safety Goggles
- LE340010-SG
- Laser goggle for fiber laser (1064nm).
Request Information
If you're looking for a partner who will take the time to discuss your application, set you up with the best technology for the job, and support you from installation to training and ongoing tech support, you've come to the right place. Contact us for a prompt quote, application review, or system demo.
