Integrated Dot Peen Mark Verification & Inspection Vision System
Vision System — Pryor VeriSmart 4

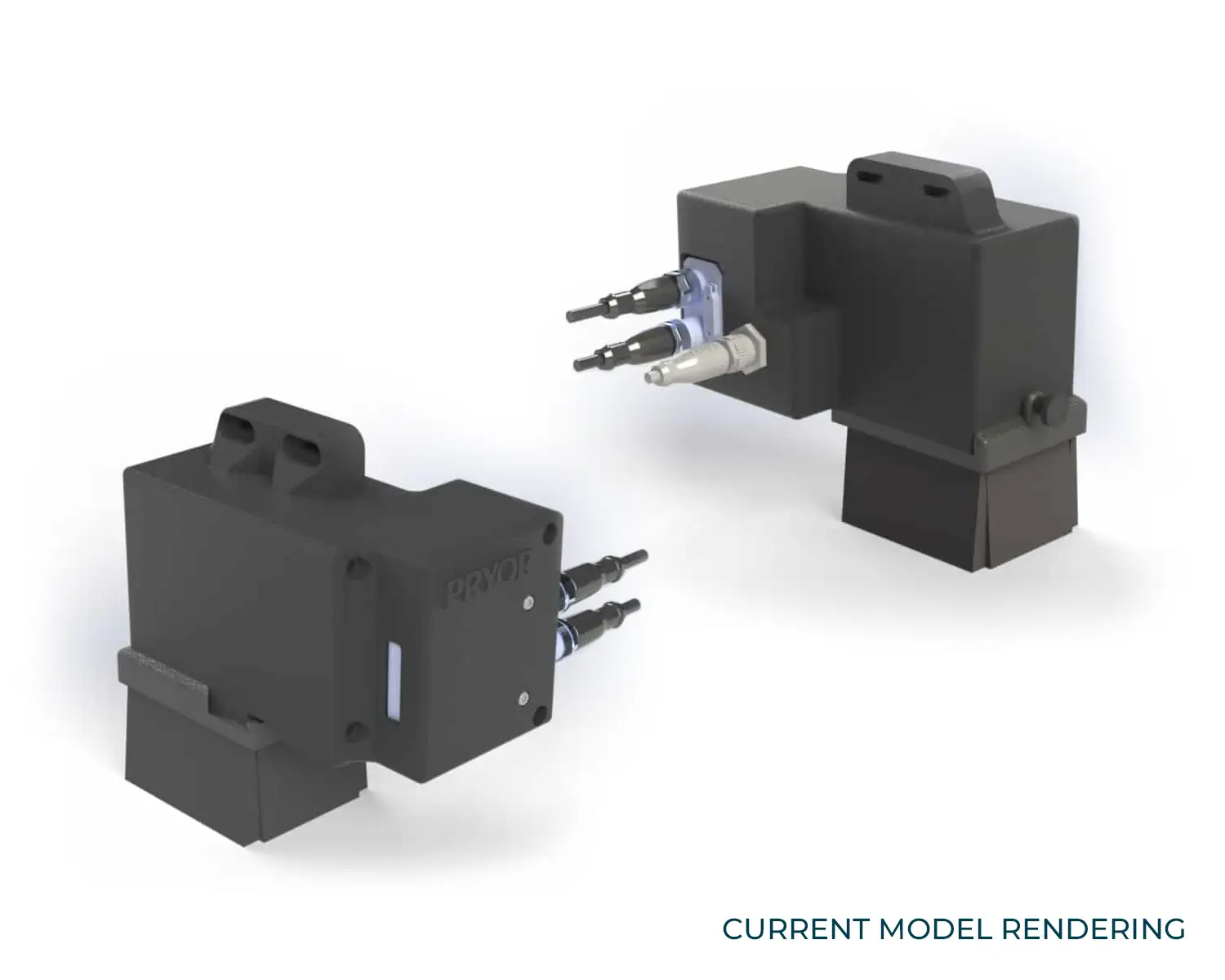

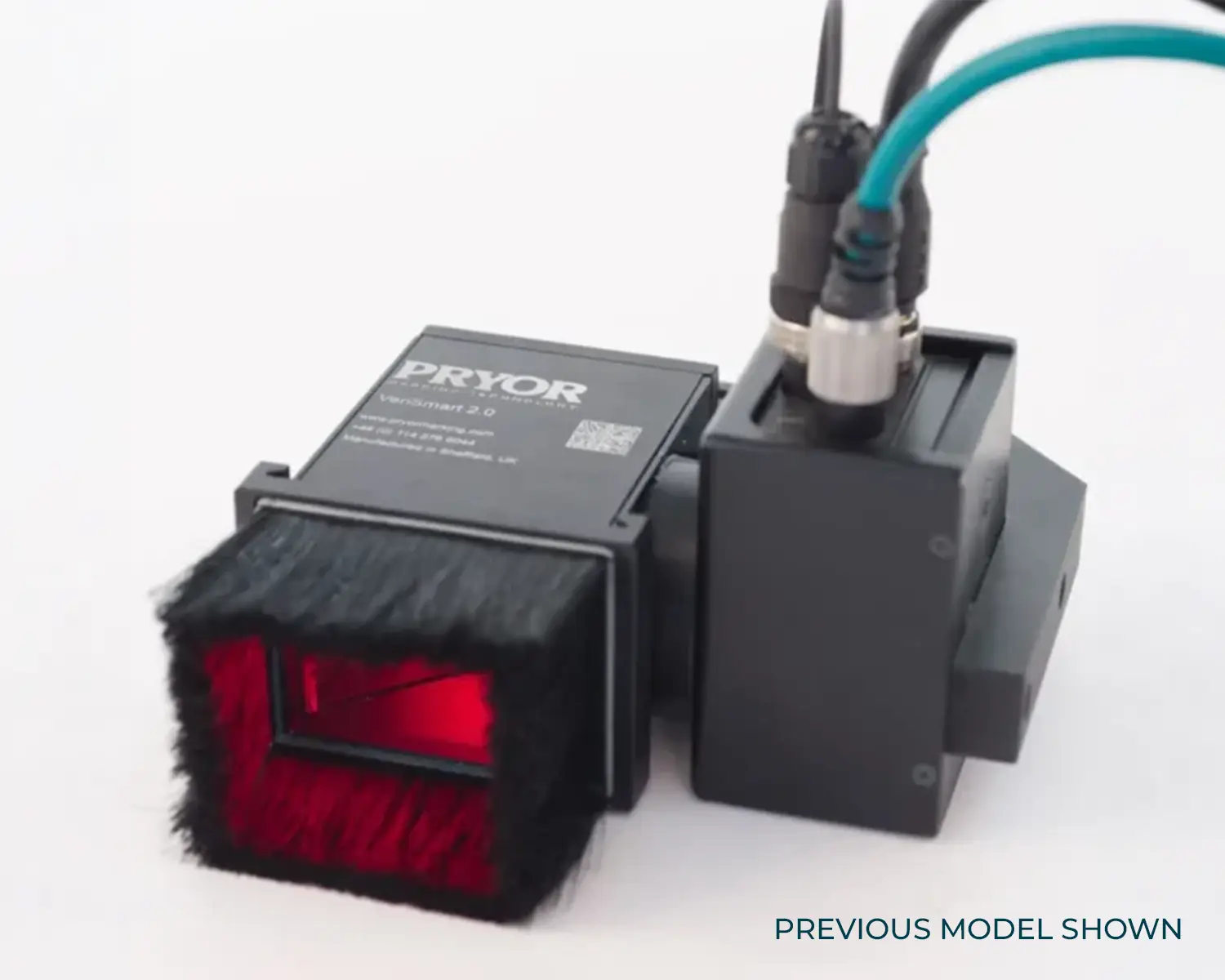

VeriSmart 4 is an integrated verification and inspection system for Pryor BenchDot dot peen marking systems. It combines an industrial-grade Cognex In-Sight 2800 AI-enabled camera with a custom Pryor housing and lighting module to maximize inspection reliability across different marked surfaces, materials and component geometries.

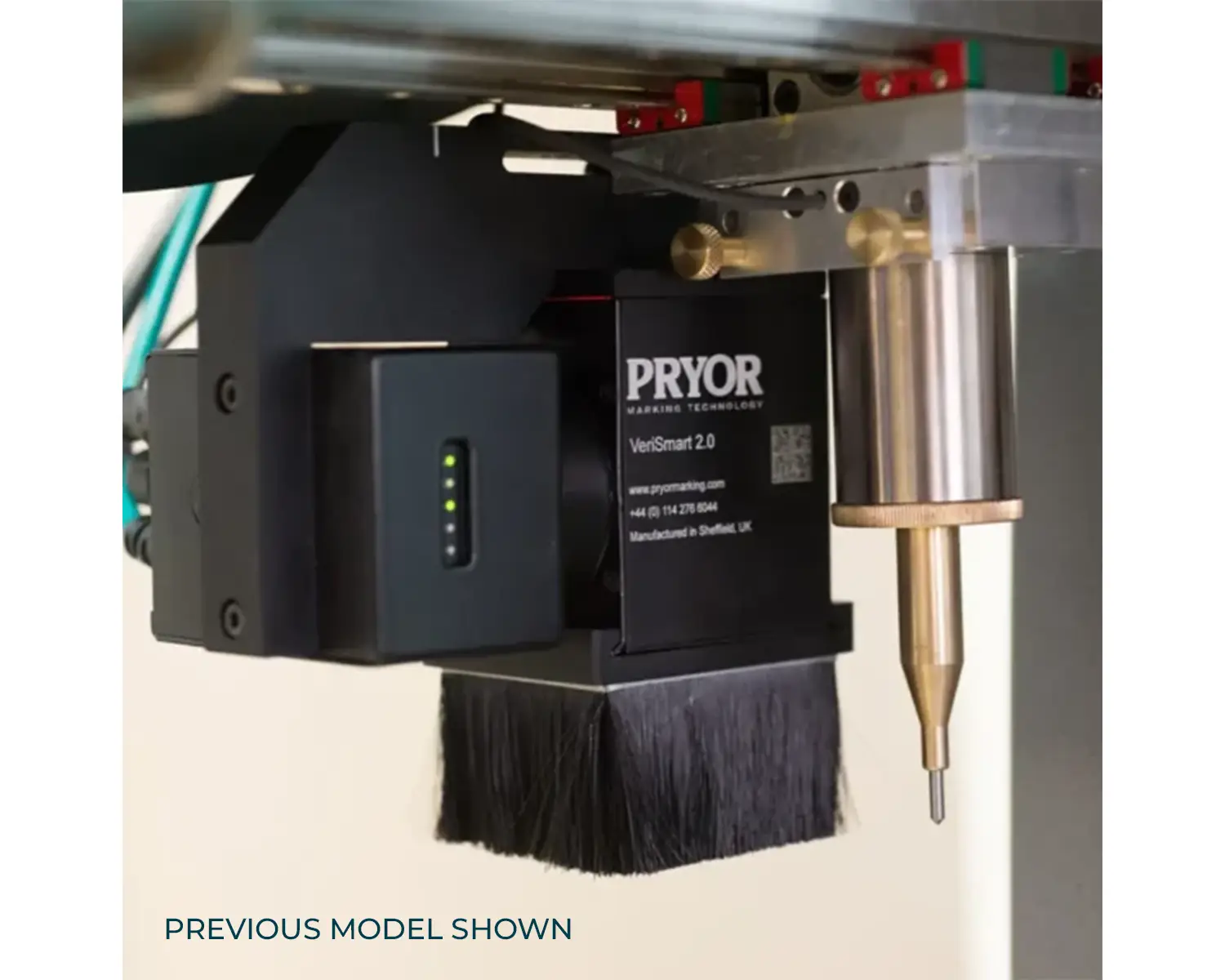

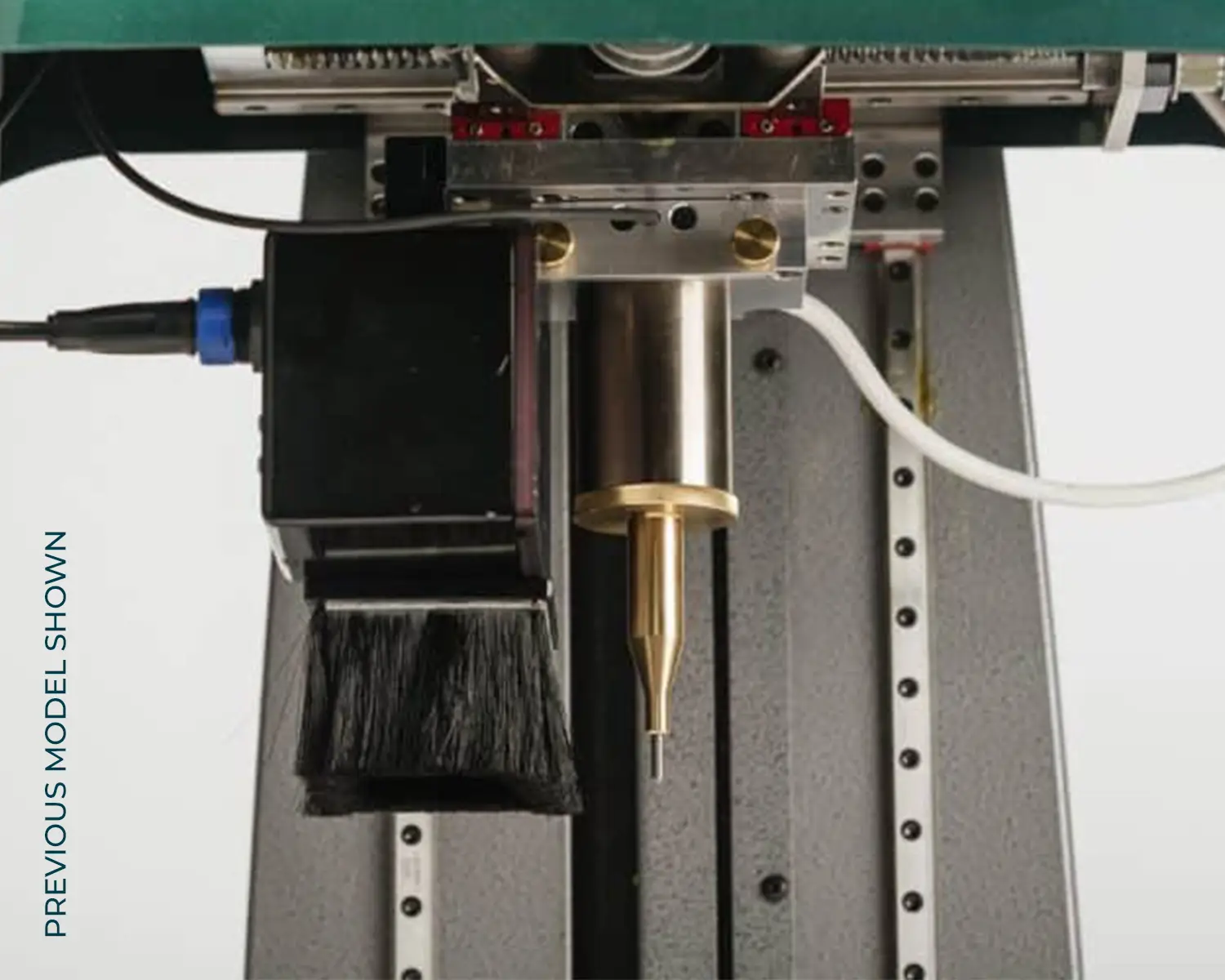

VeriSmart is mounted directly alongside the marking head, so it inspects and verifies the mark immediately after it’s applied. It automates verification of part identification marks, including Data Matrix codes and human-readable text. The same MarkMaster 4 software that controls your machine manages inspection and verification results.
This vision system is a worthwhile investment for production shops that require automated traceability records. Typical applications include aerospace engine blades, discs and casings; automotive VIN and component ID; and medical device and regulated component marking.
VeriSmart can be ordered as an add-on to new BenchDot machine purchases, or retrofitted onto existing units.
Verify Critical Marks Directly Within Your Production Process
VeriSmart 4 is designed for manufacturers who need verification grading, OCR, reporting and traceability evidence for high-value or quality-critical components. Because of the high-quality linear, on-axis lighting used for verification, it is best suited to verifying marks on flat, machined surfaces. Contact us for an application review to see if it's a good fit for your application.
- Data Matrix Code Verification
- Verify Data Matrix codes against recognized industrial and aerospace standards, confirming that direct part marks meet the required quality level: AS9132, Rolls-Royce JES131, RRES90003, AIM DPM and ISO/IEC 29158. VeriSmart measures and reports key Data Matrix quality parameters such as symbol contrast, modulation, axial non-uniformity, grid distortion and overall grade, keeping marked codes readable and suitable for long-term traceability.
- OCR and OCV Inspection
- Inspect human-readable text and other mark features. OCR and OCV tools validate marked characters against expected data strings, confirming that the correct information has been marked and that characters are legible and complete. VeriSmart also supports feature finding, edge detection and positional analysis, so the system locates part features, confirms mark position and identifies variation between programmed and actual mark location.
- Automated Reporting
- After each marking cycle, MarkMaster 4 generates a detailed PDF report containing captured images, verification results, inspection metrics and overall quality grade. These are stored against your specific part number for full lifecycle traceability.
- Enclosure
- The Laser Touch is a scalable marking system that facilitates the construction of custom-made marking enclosures and workstations providing class 1 laser safety.
